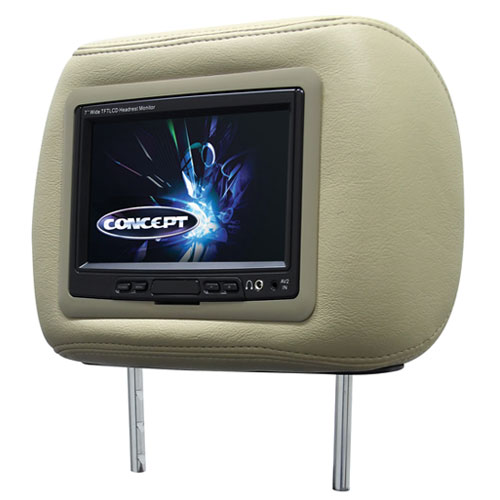

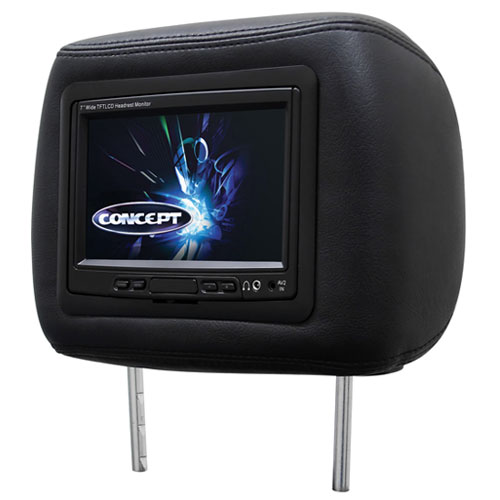

7" HEADREST MONITOR
SYSTEM
Panel
Properties
- 7 inch wide (16:9) TFT LCD monitor
- Remote eye extension: 1
- AV input position: 1 front AV input, 1
wired AV input
- Dual channel IR transmitter
- ch A -- 2.3MHz (left) ~ 2.8MHz (right)
- ch B -- 3.2MHz (left) ~ 3.8MHz
(right)
- Signal-to-noise ratio: =75dB
- Remote control included
Unit dimensions (WxHxD): 10-1/2" x 8" x 4-1/4"
|
|

|

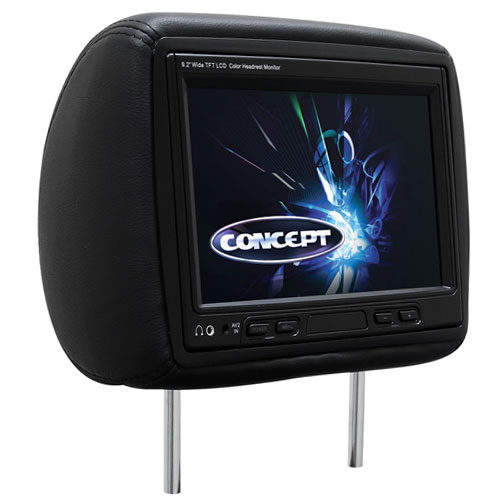

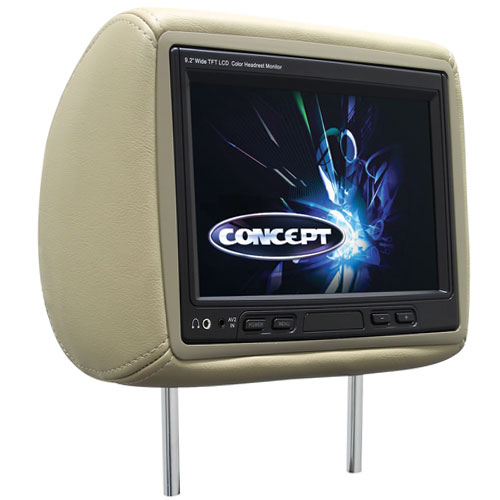

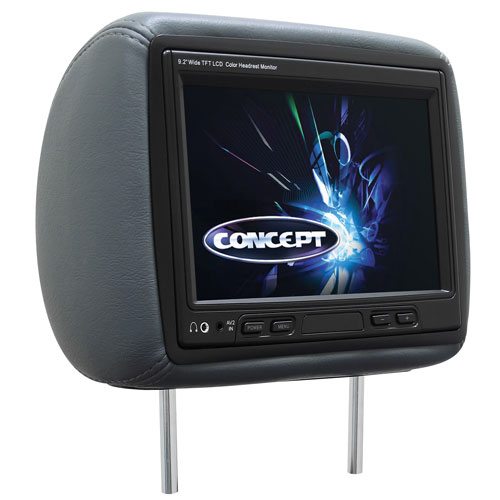

9.2" HEADREST MONITOR
SYSTEM
Panel Properties
- 9.2 inch wide TFT LCD monitor
- Remote eye extension: 1
- AV input position: 1 front AV input, 1 wired AV input
- Dual channel IR transmitter
- ch A -- 2.3MHz (left) ~ 2.8MHz (right)
- ch B -- 3.2MHz (left) ~ 3.8MHz (right)
- Signal-to-noise ratio: =75dB
- Remote control included
- Unit dimensions (WxHxD): 11-3/8" x 8-5/8" x 4-3/4"
- Unit weight: 8 lbs
|
|

|
|

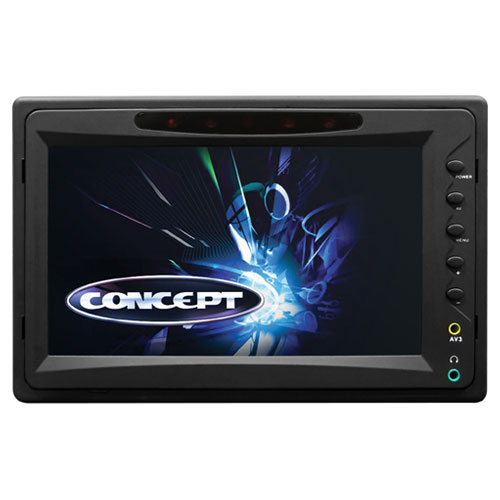

HR-720
7 Inch Wide Monitor
for Headrests
Specifications & Features
- 7 inch wide (16:9) TFT LCD monitor
- NTSC/PAL compatible
- Brightness: 300 cd/m2
- Resolution: 480 R.G.B. x 234
- Display Mode: Full/Normal
- Dual Channel IR for Wireless Headphones
- Channel A: L - 2.3MHz; R - 2.8MHz
- Channel B: L - 3.2MHz; R - 3.8MHz
- Auto on with video signal
- Rotatable picture
- Operating Temperature: 14°F to 140°F
- Storage Temperature: -4°F to 158°F
- Operating Voltage: DC 12V~14.4V
- Power consumption: 9 watts
- Dimensions (W x D x H): 5” x 0.9” x 7.7”
- Weight: 2.8 lbs
Included Accessories
- Wireless Remote Control (batteries included)
- AV/Power Cable
- 3.5mm to AV Cable
- Monitor Shroud
- Monitor Removal Tool
- User’s
Manual
|
